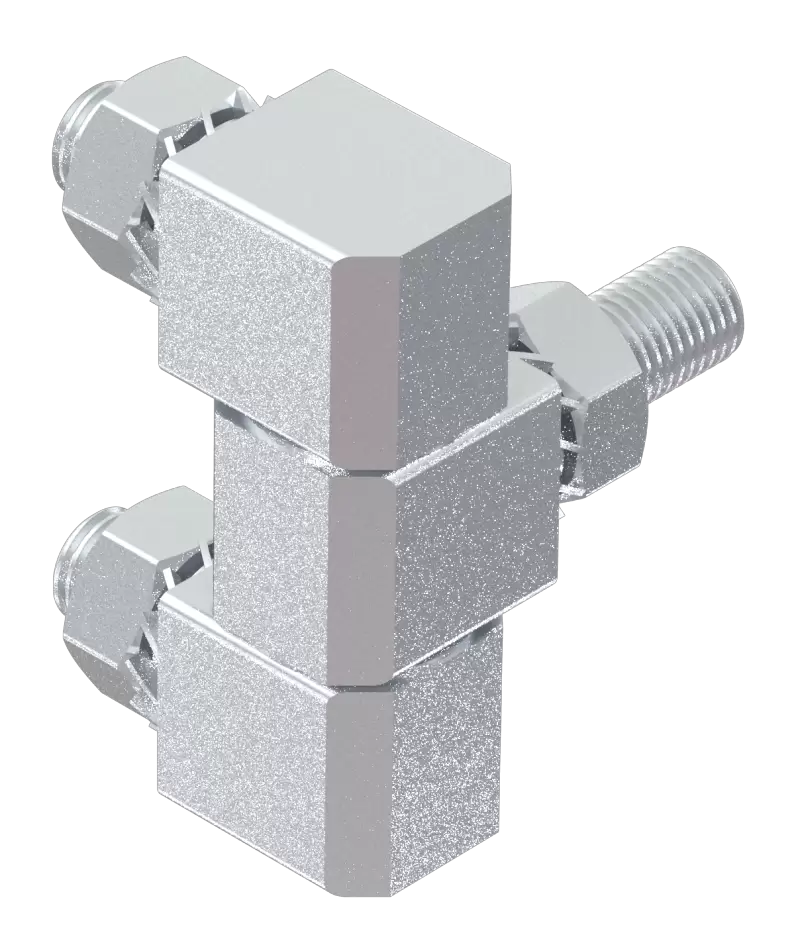

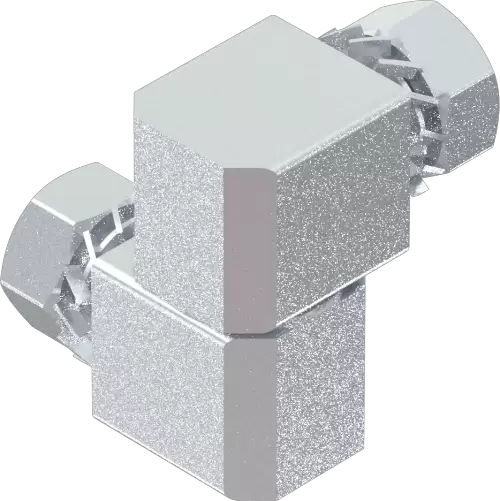

Lift-off Hinge 2207 Series(Small Size)
Lift-off Hinge,Removable hinge,In-line hinge,Quick released hinge,2207-256-01,2207-256-304,2207-392-01,2207-392-304
- Easy installation with screws/nuts
- Detachable installation
- Door Part/Frame part:Q235/Stainless steel 304
- Pin:Q235/Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

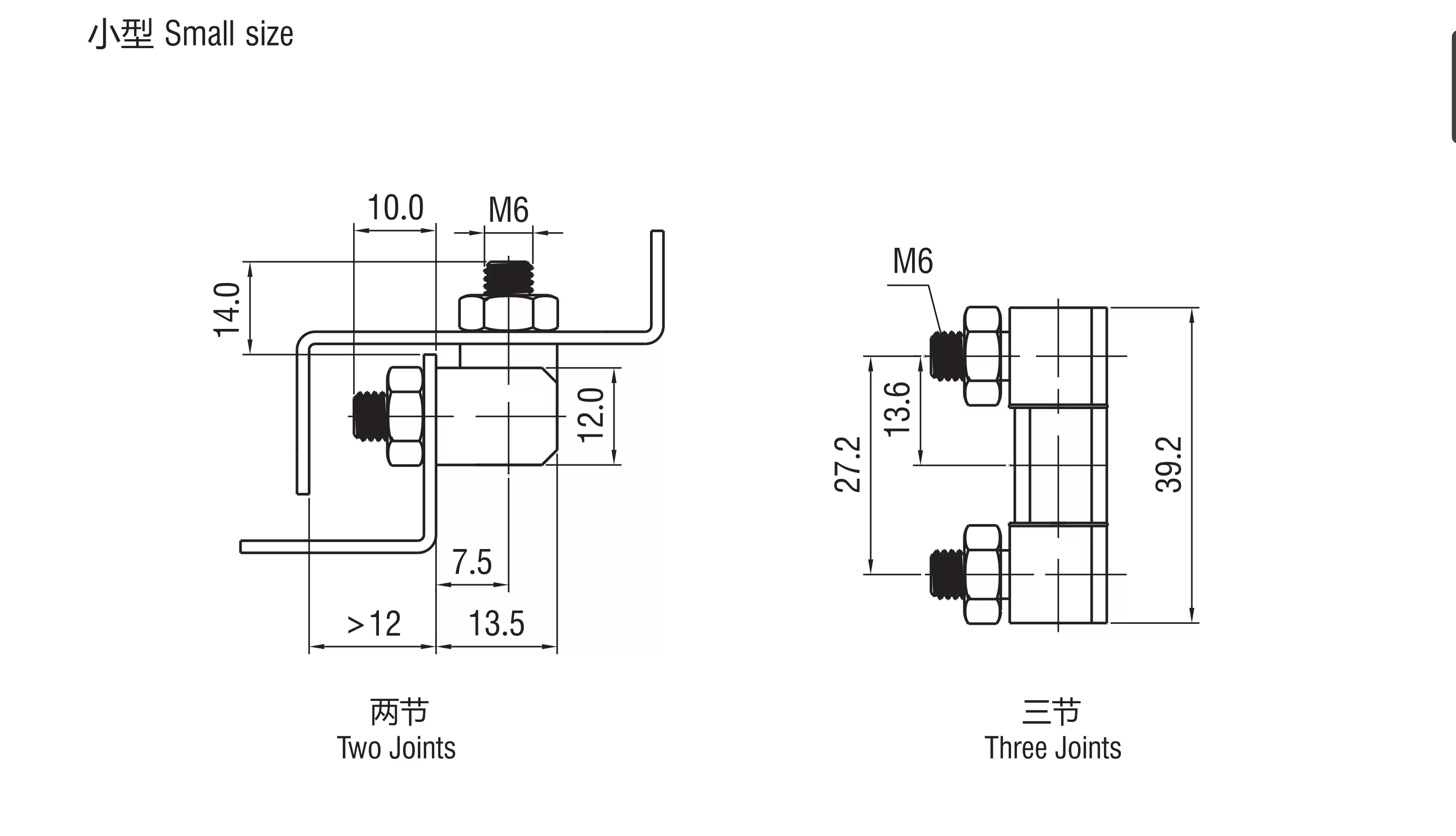

Lift-off Hinge 2207 Small Size Series Product Data Sheet
| Part Number | Version | Length L(mm) | Material | |
|---|---|---|---|---|
|
2207-256-01 | Two joints | 25.6 | Q235 |
|
|
2207-256-304 | Two joints | 25.6 | Stainless steel 304 |
|
|
2207-392-01 | Three joints | 39.2 | Q235 |
|
|
2207-392-304 | Three joints | 39.2 | Stainless steel 304 |
Accessories
There are currently no optional accessories available
