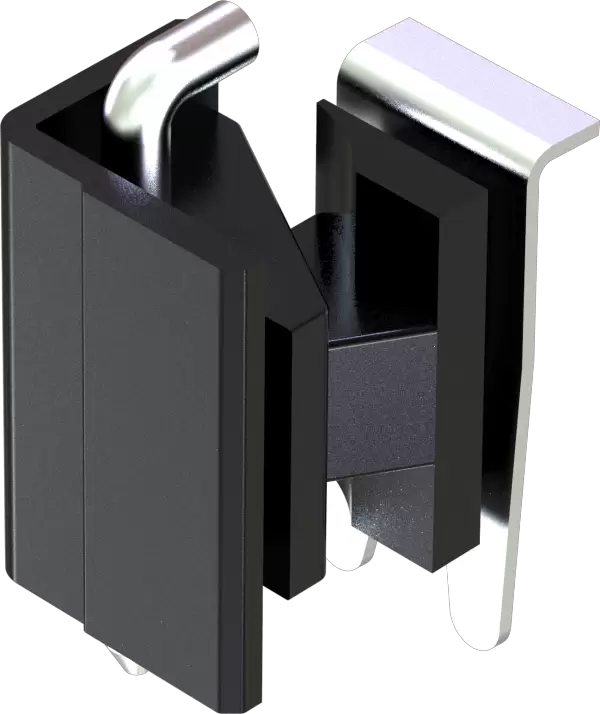

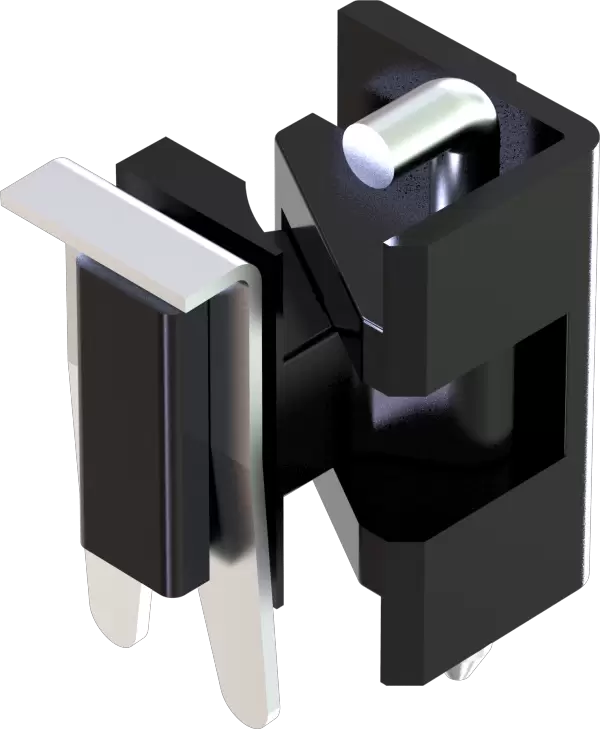

External Hinge 2307 Series
External Hinge,2307-01-10,2307-01-50
-
Finish：
Black E-Coated
Black Matte Powder Coated
- Quick installation
- Detachable installation
- Door Part/Frame part:Zinc die
- Pin:Q235
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

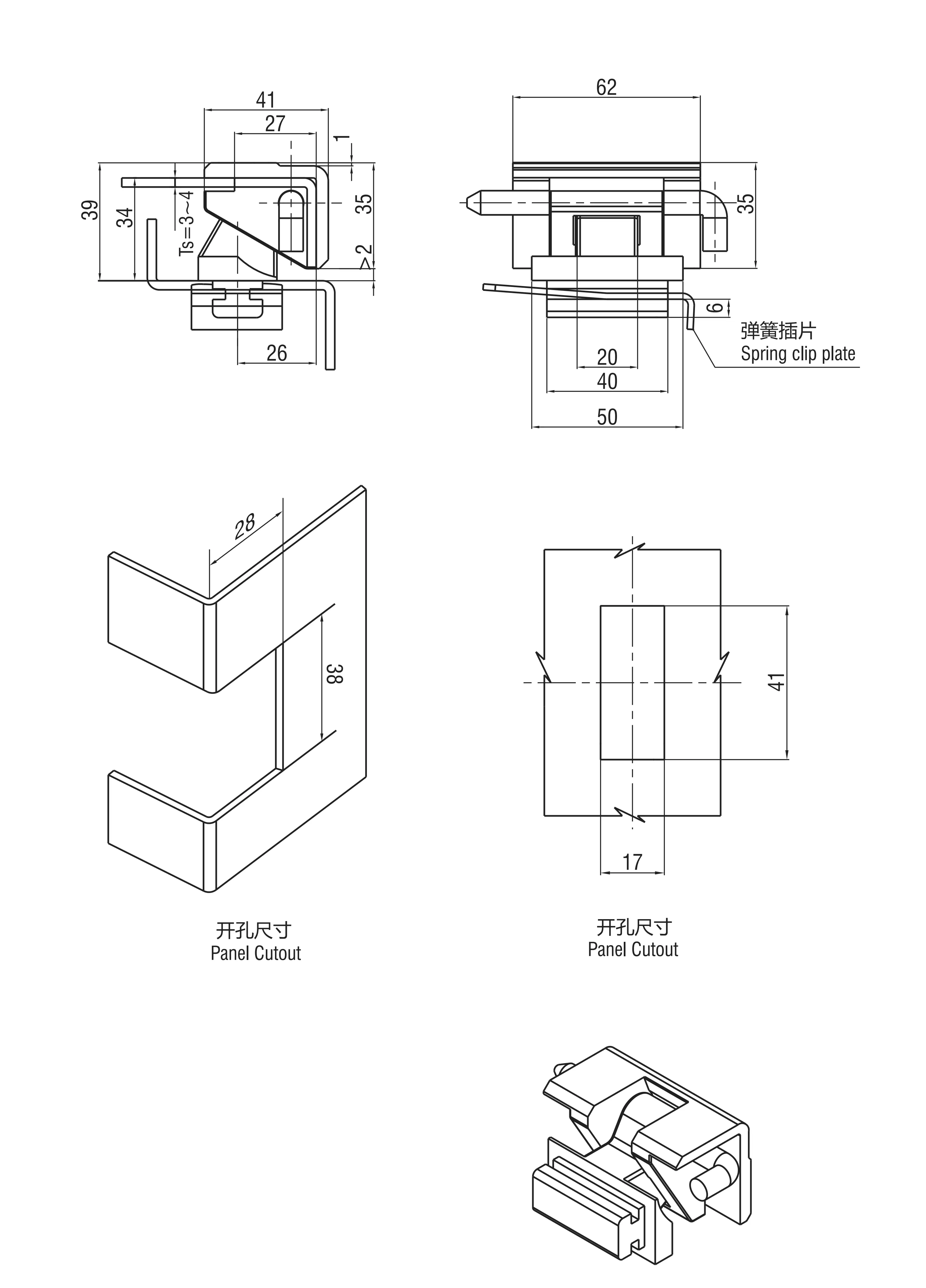

External Hinge 2307 Series Product Data Sheet
| Part Number | Material | Finish | |
|---|---|---|---|
|
2307-01-10 | Zinc die | Black Matte Powder Coated |
|
|
2307-01-50 | Zinc die | Black E-Coated |
Accessories
There are currently no optional accessories available
