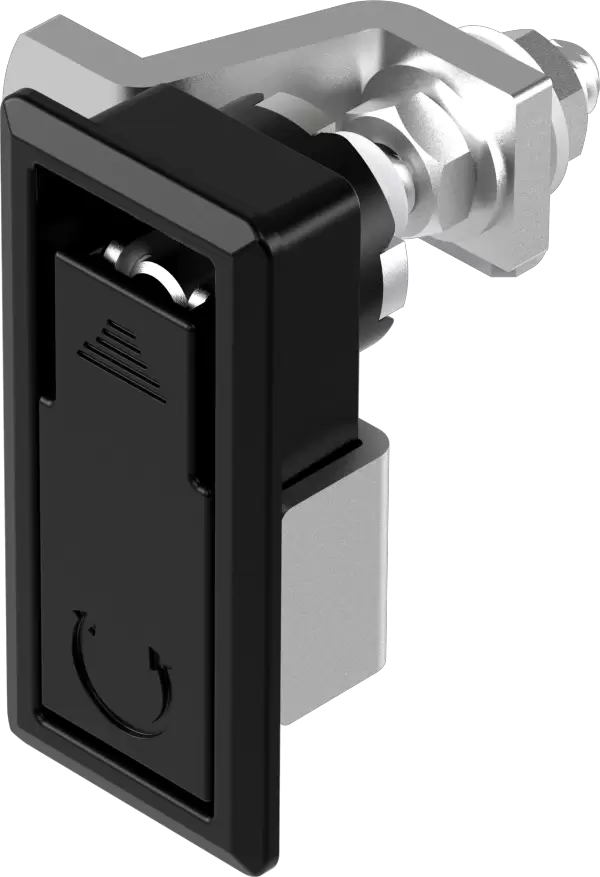

Compression Latch 1241 Small Type Series
Compression Latch,Compression lock,1241-200-130,1241-200-110,1241-200-210,1241-200-230,1241-200-310,1241-200-330
- Panel Cutout： Other
- IP Rating： IP65
-
Finish：
Bright chrome plated
Black Matte Powder Coated
- Handle operation, convenient and quick
- Compression locking, for enhanced security
- Housing,Handle:Zinc die
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

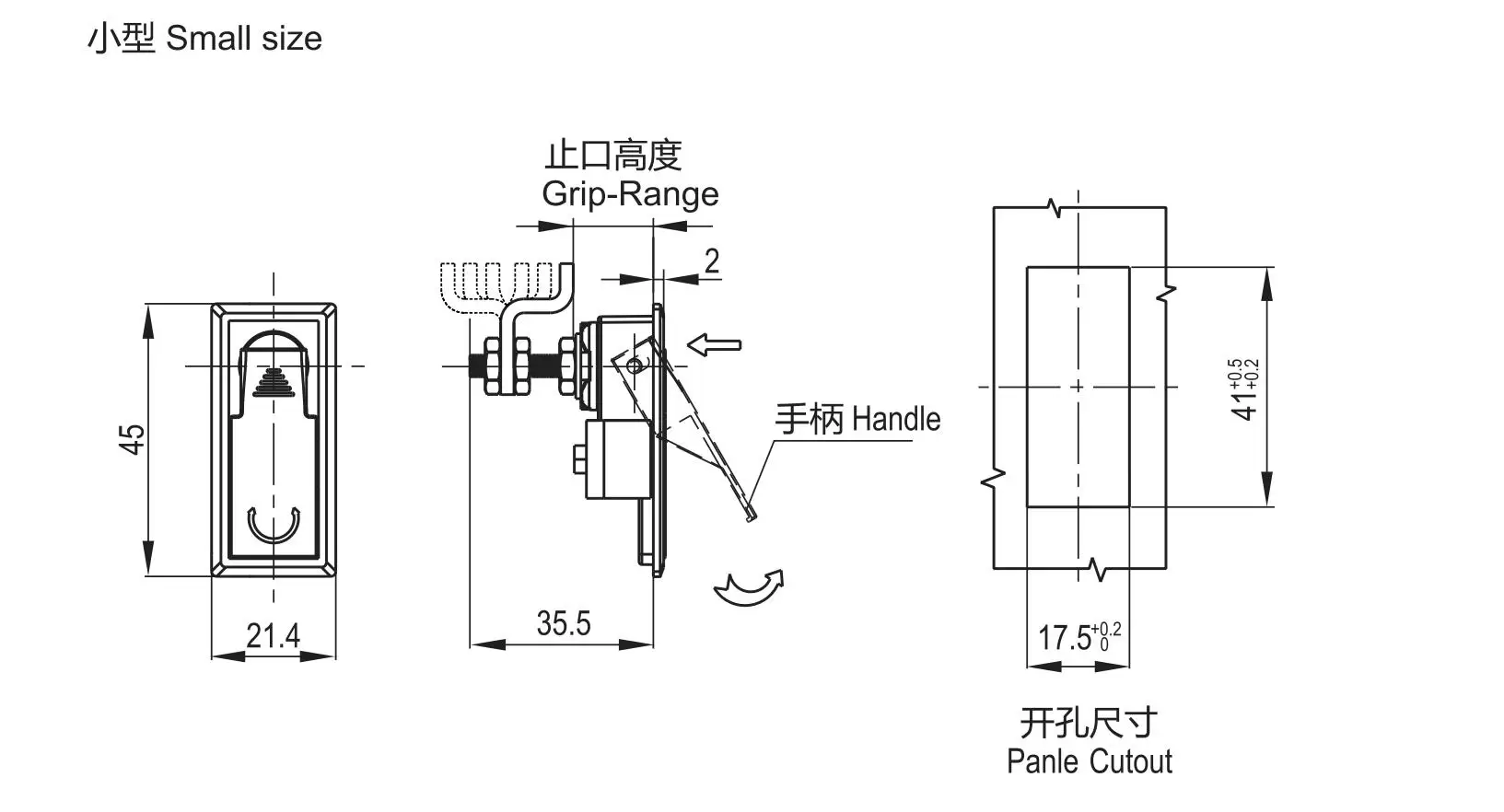

Compression Latch 1241 Small Series, Cam Pawl Forward 4.5-10.5mm，Cam Pawl Reversed 34.5-40.5mm Product Data Sheet
| Part Number | Insert Type | Finish | |
|---|---|---|---|
|
1241-200-110 | Non-locking | Black Matte Powder Coated |
|
|
1241-200-130 | Non-locking | Bright chrome plated |
Compression Latch 1241 Small Series, Cam Pawl Forward 10.5-16.5mm，Cam Pawl Reversed 28.5-34.5mm Product Data Sheet
| Part Number | Insert Type | Finish | |
|---|---|---|---|
|
|
1241-200-210 | Non-locking | Black Matte Powder Coated |
|
|
1241-200-230 | Non-locking | Bright chrome plated |
Compression Latch 1241 Small Series, Cam Pawl Forward 16.5-22.5mm，Cam Pawl Reversed 22.5-28.5mm Product Data Sheet
| Part Number | Insert Type | Finish | |
|---|---|---|---|
|
|
1241-200-310 | Non-locking | Black Matte Powder Coated |
|
|
1241-200-330 | Non-locking | Bright chrome plated |
